Din Connector 13 Pin Female
DIN connectors are widely used in audio and video, medical, communication and other fields.
Number of cores:3pin,4pin,5pin,6pin,7pin,8pin,9pin,10pin,11pin,12pin,13pin,14pin.
Customised
0755-27065724
Online consultation

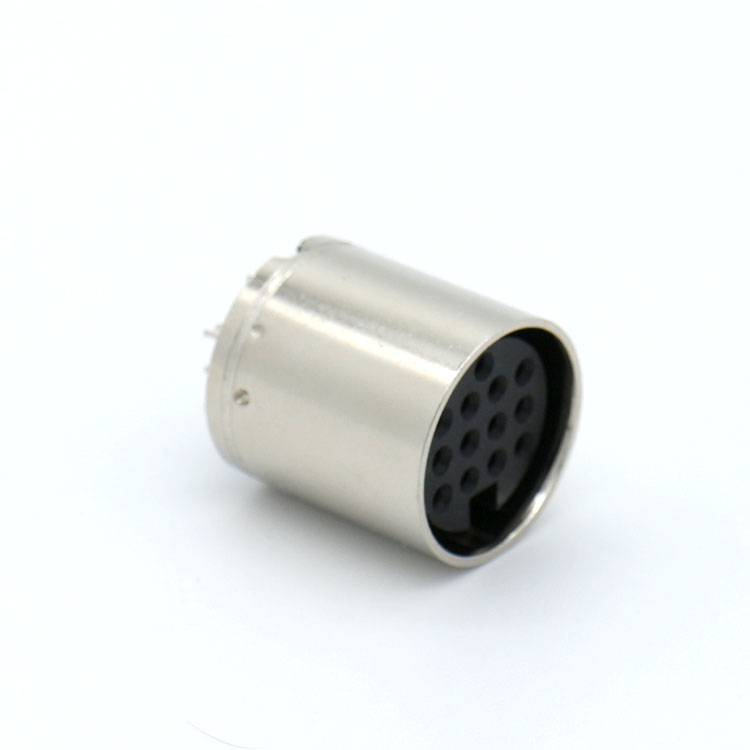

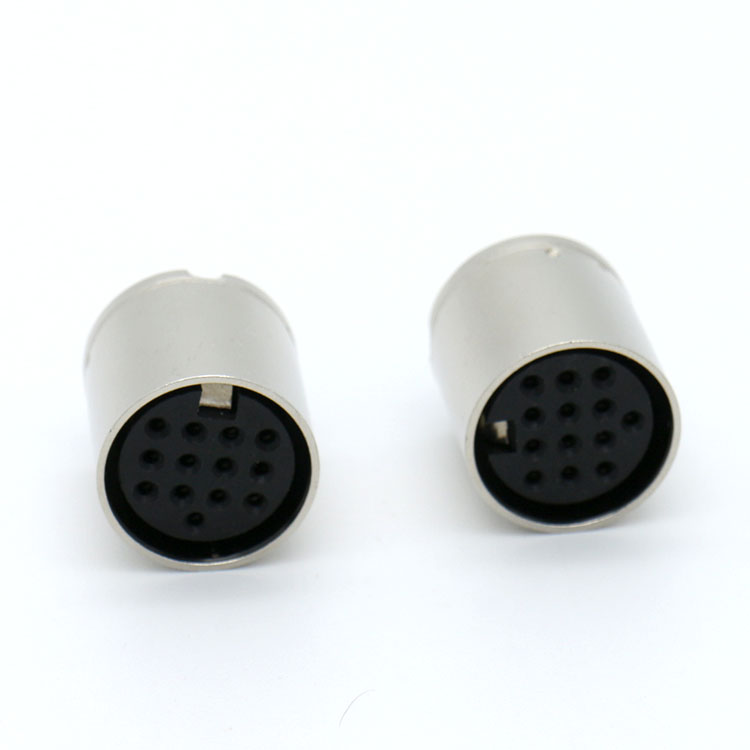

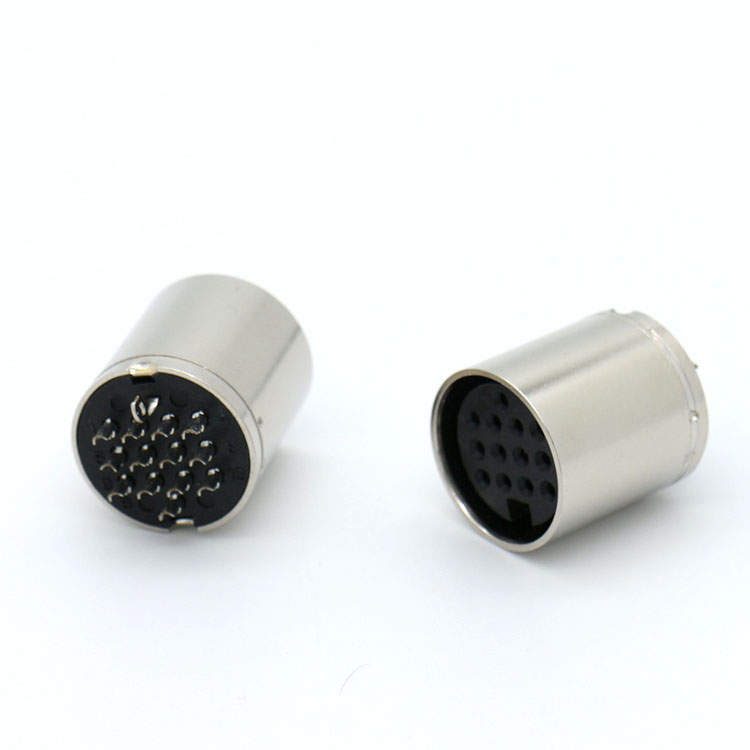

Din Connector 13 Pin Female
1.Service life:more than 5000 times
2.Plugging force:1.8-4.5KG
3.Withstanding voltage:500V AC
4.Insulation resistance::>100MΩ
5.Contact impedance:≤20mΩ
6.Current:2-5A
7.Voltage:50V DC
8.Temperature:-25°C-105°C
Material:
1. Outer tube: nickel-plated brass
2. Needle core: brass with nickel plating
3.Rubber core:PBT
